What does this product do?
The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet.
Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality.
Moreover, TL-SG105 adopts a lower power consumption design. With the innovative energy-efficient technology,
the TL-SG105 can save up to 84% of the power consumption, making it an eco-friendly solution for your home or office network.
FEATURES:

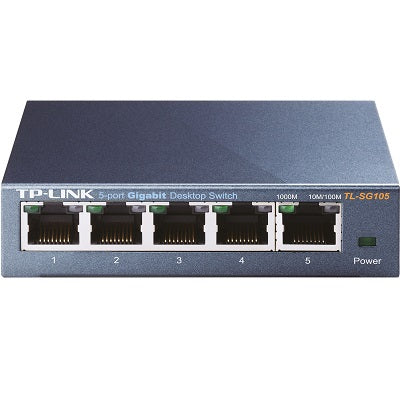

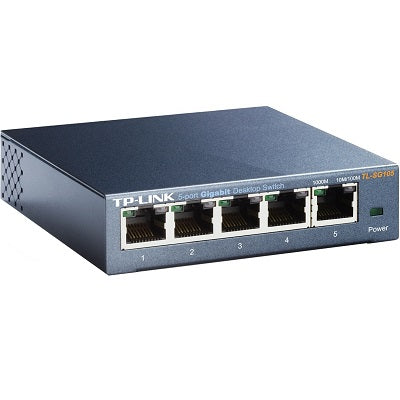

- 5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX.
- Green Ethernet technology saves power up to 84%.
- IEEE 802.3x flow control provides reliable data transfer.
- Steel housing, desktop, or wall-mounting design.
- Support 802.1p/DSCP QoS* and IGMP Snooping function.
- Plug and play, no configuration needed.
* For V2 and later version.
HARDWARE FEATURES:
- Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p.
- Interface: 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports.
- Fan Quantity: Fanless.
- Power Consumption Maximum: 3.2W (220V/50Hz).
- External Power Supply: External Power Adapter (Output: 9VDC / 0.6A).
- LED Indicator: System Power Link, Speed, and activity indicators per port built into each RJ-45 port.
- Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm).
PERFORMANCE:
- Packet Forwarding Rate: 7.4Mpps.
- MAC Address Table: 2K.
- Packet Buffer Memory: 1Mb.
- Jumbo Frame: 15KB.
SOFTWARE FEATURES:
- Advanced Features: Green Technology, saving power up to 84%, 802.3X Flow Control, 802.1P/DSCP QoS (for V2 and later version), and IGMP Snooping
- Transfer Method Store and Forward
OTHERS:
- Certification: CE, FCC, RoHS.
- Package Contents: 5-Port 10/100/1000Mbps Desktop Switch, Power Adapter, Installation Guide.
