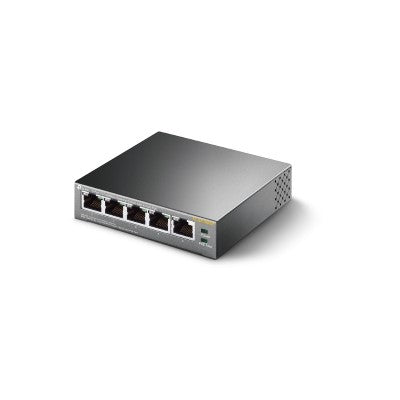

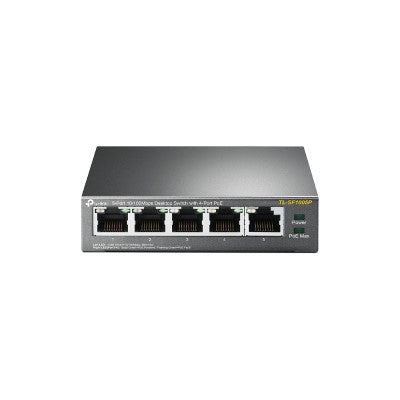

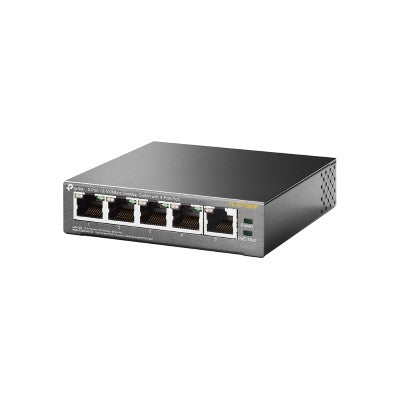

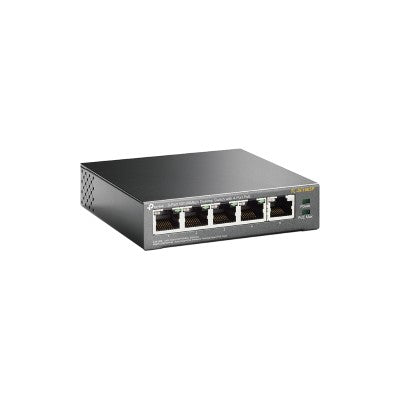

TP-Link TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

5 10/100Mbps RJ45 ports

With four PoE ports, transfers data and power on one single cable

Working with IEEE 802.3af compliant PDs expands home and office network

Supports PoE Power up to 15.4W for each PoE port

Supports PoE Power up to 58W for all PoE ports

Requires no configuration and installation

What This Product Does:

TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE

(Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant

Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable

allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices

such as APs, IP Cameras or IP Phones, etc.

Power over Ethernet:

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE)

function. These PoE ports can automatically detect and supply power with IEEE 802.3af compliant

Powered Devices (PDs).

Overload Arrangement:

TL-SF1005P has the priority function which will help protect the system when the system power is overloaded.

If all PoE PDs power consumption is >= 58W, a priority will be arranged among the PoE ports, then the system

will cut off the power of the lowest-priority port.

Port Priority Function:

Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, which

means Port 4 will be cut off when all total PoE PDs power consumption exceeds 58W. For example, Port 1, 2

and 4 is using 15.4W (maximum power per port is 15.4W); the system power is 46.2W in total. If there is an

additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the

overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.

Easy To Use:

TL-SF1005P is easy to install and use. It requires no configuration and installation. With desktop design,

outstanding performance and quality, the TP-Link’s TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port

PoE is an ideal choice for expanding your home or office network.
