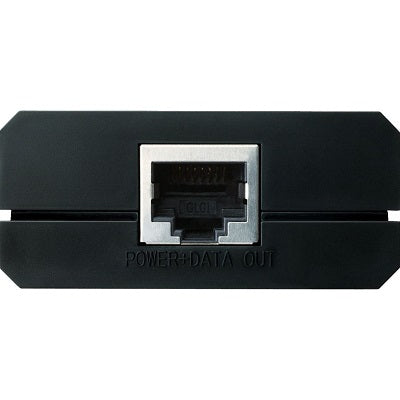

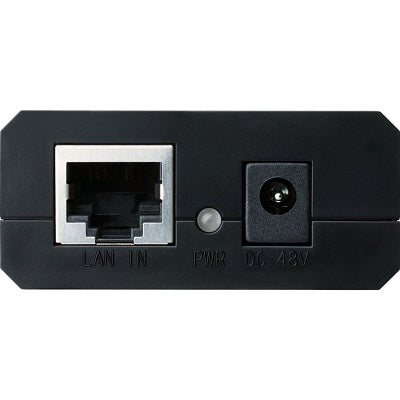

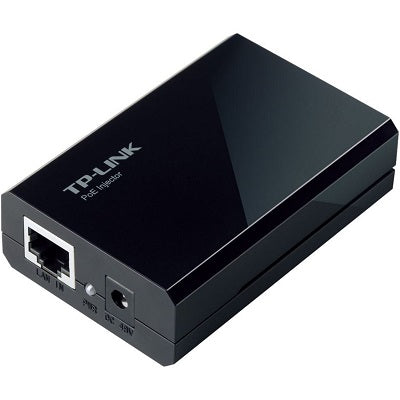

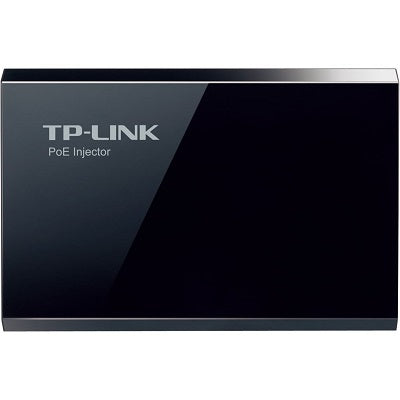

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
- IEEE 802.3af compliant.
- Delivers power up to 100 meters.
- Auto-determine the necessary power requirements.
- Gigabit speed support.
- Plug-and-Play, requires no configuration.
- External power adapter supply.
HARDWARE FEATURES
- Interface: 2 10/100/1000Mbps RJ45 Port, AUTO Negotiation/AUTO MDI/MDIX and 1 48VDC POWER INPUT PORT.
- Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m), EIA/TIA-568 100Ω STP (Max 100m), 100BASE-TX: UTP category 5, 5e cable (Max 100m) and EIA/TIA-568 100Ω STP (Max 100m), 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m).
- Power Supply: 15.4W (Max. 48VDC).
- LED: Indicator PWR.
- Dimensions ( W x D x H ): 3.2*2.1*0.9 in.(80.8*54*24 mm).
SOFTWARE FEATURES
- Basic Function: Compatible With IEEE 802.3af Compliant PDs, Delivers Power Up To: 100 Meters and Auto-Determine The Necessary Power Requirements
OTHERS
- Certification: FCC, CE, RoHS
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
