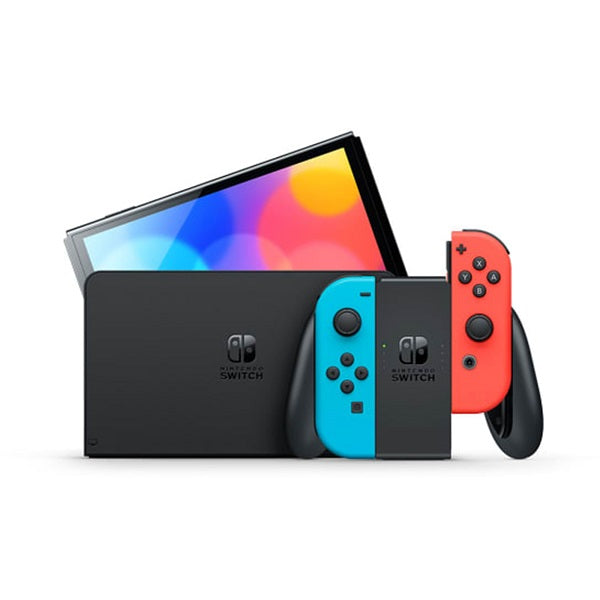

| Nintendo Switch console (OLED model) | ||||||||||
| Size | 4 inches high, 9.5 inches long, and 0.55 inches deep (with Joy-Con attached) | *The depth from the tip of the analog sticks to the tip of the ZL/ZR buttons is 1.12 inches | ||||||||
| Weight | Approximately .71 lbs | (Approximately .93 lbs with Joy-Con controllers attached) | ||||||||
| Screen | Multi-touch capacitive touch screen / 7.0 inch OLED screen / 1280x720 | |||||||||
| CPU/GPU | NVIDIA Custom Tegra processor | |||||||||
| Storage | 64 GB | Users can easily expand storage space using microSDHC or microSDXC cards up to 2TB (sold separately). | ||||||||
| Wireless | Wi-Fi (IEEE 802.11 a/b/g/n/ac compliant) / Bluetooth 4.1 | |||||||||
| Video output | Up to 1080p via HDMI in TV mode | Up to 720p via built-in screen in Tabletop mode and Handheld modes | ||||||||
| Audio output | Compatible with 5.1ch Linear PCM output | Output via HDMI connector in TV mode | ||||||||
| Speakers | Stereo | |||||||||
| Buttons | Power button / Volume button | |||||||||
| USB connector | USB Type-C | Used for charging or for connecting to the Nintendo Switch dock. | ||||||||
| Headphone/mic jack | 3.5mm 4-pole stereo (CTIA standard) | |||||||||
| Game card slot | Nintendo Switch game cards | |||||||||
| microSD card slot | Compatible with microSD, microSDHC, and microSDXC memory cards | *Once the microSDXC card is inserted, a system update will be necessary. An internet connection is required to perform this system update. | ||||||||
| Sensor | Accelerometer, gyroscope, and brightness sensor | |||||||||
| Operating environment | 41-95 degrees F / 20-80% humidity | |||||||||
| Internal battery | Lithium-ion battery / 4310mAh | |||||||||
| Battery life | Approximately 4.5 - 9 hours | The battery life will depend on the games you play. For instance, the battery will last approximately 5.5 hours for The Legend of Zelda: Breath of the Wild. | ||||||||
| Charging time | Approximately 3 hours | *When charging while the hardware is in sleep mode | ||||||||
| Nintendo Switch dock with LAN port | ||||||||||
| Size | Approximately 4.1 inches high, 6.9 inches long, and 2.0 inches deep | |||||||||
| Weight | Approximately .69 lbs | |||||||||
| Output | USB Port (USB 2.0 compatible) x2 on the side | System connector | AC adapter port | HDMI port | Wired LAN port (LAN cable sold separately.) | |||||
| Joy‑Con controllers | ||||||||||
| Joy-Con [L] | Joy-Con [R] | |||||||||
| Size | Approximately 4.1 inches high, 6.8 inches long, and 2.12 inches deep | |||||||||
| Weight | 1.7 oz | 1.8 oz | ||||||||
| Buttons | Left Stick | Up down left right L ZL SL SR - Buttons | Capture Button | Release Button | Sync Button | Right Stick | A B X Y R ZR SL SR + Buttons | HOME Button | Release Button | Sync Button |
| Wireless | Bluetooth 3.0 | Bluetooth 3.0/NFC | ||||||||
| Sensor | Accelorometer | Gyroscope | Accelorometer | Gyroscope | IR Motion Camera | |||||
| Vibration | HD Rumble | |||||||||
| Battery Life | Approximately 20 hours | *This is an estimate. The battery life may be shortened depending on the usage. | ||||||||
| Charging Time | Approximately 3 hours 30 minutes | * Joy-Con controllers are charged by attaching them to a console or charging grip connected to a power supply. | ||||||||
| Nintendo Switch console (OLED model) | ||||||||||
| Size | 4 inches high, 9.5 inches long, and 0.55 inches deep (with Joy-Con attached) | *The depth from the tip of the analog sticks to the tip of the ZL/ZR buttons is 1.12 inches | ||||||||
| Weight | Approximately .71 lbs | (Approximately .93 lbs with Joy-Con controllers attached) | ||||||||
| Screen | Multi-touch capacitive touch screen / 7.0 inch OLED screen / 1280x720 | |||||||||
| CPU/GPU | NVIDIA Custom Tegra processor | |||||||||
| Storage | 64 GB | Users can easily expand storage space using microSDHC or microSDXC cards up to 2TB (sold separately). | ||||||||
| Wireless | Wi-Fi (IEEE 802.11 a/b/g/n/ac compliant) / Bluetooth 4.1 | |||||||||
| Video output | Up to 1080p via HDMI in TV mode | Up to 720p via built-in screen in Tabletop mode and Handheld modes | ||||||||
| Audio output | Compatible with 5.1ch Linear PCM output | Output via HDMI connector in TV mode | ||||||||
| Speakers | Stereo | |||||||||
| Buttons | Power button / Volume button | |||||||||
| USB connector | USB Type-C | Used for charging or for connecting to the Nintendo Switch dock. | ||||||||
| Headphone/mic jack | 3.5mm 4-pole stereo (CTIA standard) | |||||||||
| Game card slot | Nintendo Switch game cards | |||||||||
| microSD card slot | Compatible with microSD, microSDHC, and microSDXC memory cards | *Once the microSDXC card is inserted, a system update will be necessary. An internet connection is required to perform this system update. | ||||||||
| Sensor | Accelerometer, gyroscope, and brightness sensor | |||||||||
| Operating environment | 41-95 degrees F / 20-80% humidity | |||||||||
| Internal battery | Lithium-ion battery / 4310mAh | |||||||||
| Battery life | Approximately 4.5 - 9 hours | The battery life will depend on the games you play. For instance, the battery will last approximately 5.5 hours for The Legend of Zelda: Breath of the Wild. | ||||||||
| Charging time | Approximately 3 hours | *When charging while the hardware is in sleep mode | ||||||||
| Nintendo Switch dock with LAN port | ||||||||||
| Size | Approximately 4.1 inches high, 6.9 inches long, and 2.0 inches deep | |||||||||
| Weight | Approximately .69 lbs | |||||||||
| Output | USB Port (USB 2.0 compatible) x2 on the side | System connector | AC adapter port | HDMI port | Wired LAN port (LAN cable sold separately.) | |||||
| Joy‑Con controllers | ||||||||||
| Joy-Con [L] | Joy-Con [R] | |||||||||
| Size | Approximately 4.1 inches high, 6.8 inches long, and 2.12 inches deep | |||||||||
| Weight | 1.7 oz | 1.8 oz | ||||||||
| Buttons | Left Stick | Up down left right L ZL SL SR - Buttons | Capture Button | Release Button | Sync Button | Right Stick | A B X Y R ZR SL SR + Buttons | HOME Button | Release Button | Sync Button |
| Wireless | Bluetooth 3.0 | Bluetooth 3.0/NFC | ||||||||
| Sensor | Accelorometer | Gyroscope | Accelorometer | Gyroscope | IR Motion Camera | |||||
| Vibration | HD Rumble | |||||||||
| Battery Life | Approximately 20 hours | *This is an estimate. The battery life may be shortened depending on the usage. | ||||||||
| Charging Time | Approximately 3 hours 30 minutes | * Joy-Con controllers are charged by attaching them to a console or charging grip connected to a power supply. | ||||||||
| Joy‑Con Strap | ||||||||||
| Size | Approximately 3.98 inches high, 0.57 inches long, and 0.55 inches deep | |||||||||
| Weight | Approximately .66 oz | |||||||||
| Joy‑Con Grip | ||||||||||
| Size | Approximately 3.98 inches high, 5.67 inches long, and 1.58 inches deep | |||||||||
| Weight | Approximately .21 lbs | |||||||||
| Joy‑Con Strap | ||||||||||
| Size | Approximately 3.98 inches high, 0.57 inches long, and 0.55 inches deep | |||||||||
| Weight | Approximately .66 oz | |||||||||
| Joy‑Con Grip | ||||||||||
| Size | Approximately 3.98 inches high, 5.67 inches long, and 1.58 inches deep | |||||||||
| Weight | Approximately .21 lbs |
