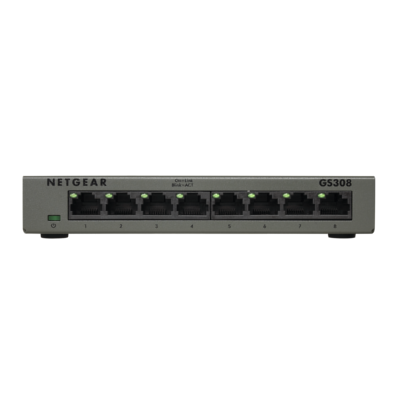

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity
to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures.
Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single
CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc.
With these Plug-and-Play switches, you can quickly and easily expand your network connections to
multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also
support energy saving technologies to help you save power and money.
Choice of Fast Ethernet and Gigabit Ethernet connectivity
Energy-efficient technology for power savings
Auto-MDI/MDIX eliminates the need for crossover cables
Non-blocking switching architecture for maximum throughput at wire speed
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless
access points, and other PD-powered devices
Fanless design for silent operation
Desktop, wall-mountable or rack-mountable (GS324, GS348)
Speed
Gigabit
Number of Ports
8
PoE Ports / Max Power Per Port
n/a
PoE Max Power Supplied (All Ports)
n/a
Connector Type
Plastic
Switch Housing
Metal
LEDs
Power, Link/Activity
Short cable power saving
Yes
Energy Efficient Ethernet Support (IEEE 802.3az)
Yes
Jumbo Frame Support
9,216 bytes
MAC Table Size
8K
Packet buffer size
128 KB
DC Power Adapter
12V / 0.5A
Max Power Consumption (Watts)
3.52W
Acoustic Noise Level @ 25° C (dBA)
0 dBA (Fanless)
Operating Temperature
0° to 40°C (32° to 104°F)
MTBF (@ 25° C)
1,528,321 hours
Electromagnetic compliance (A or B)
Class B
Form Factor
Desktop or wall-mountable
Dimensions (W x D x H)
158 x 101 x 29 mm (6.2 x 4.0 x 1.1 in)
Weight
0.38 kg (0.84 lb)
