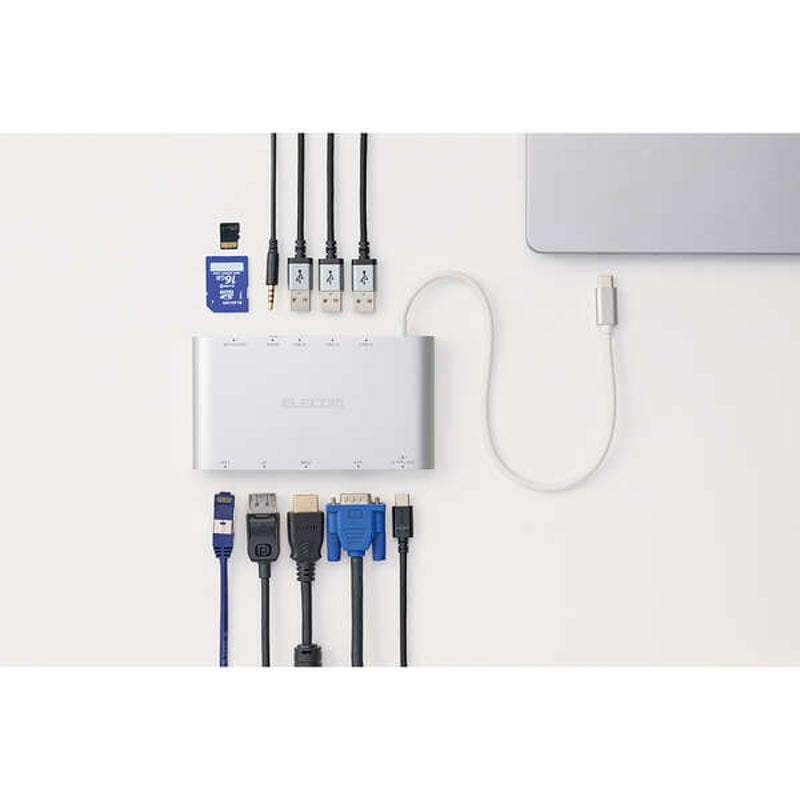

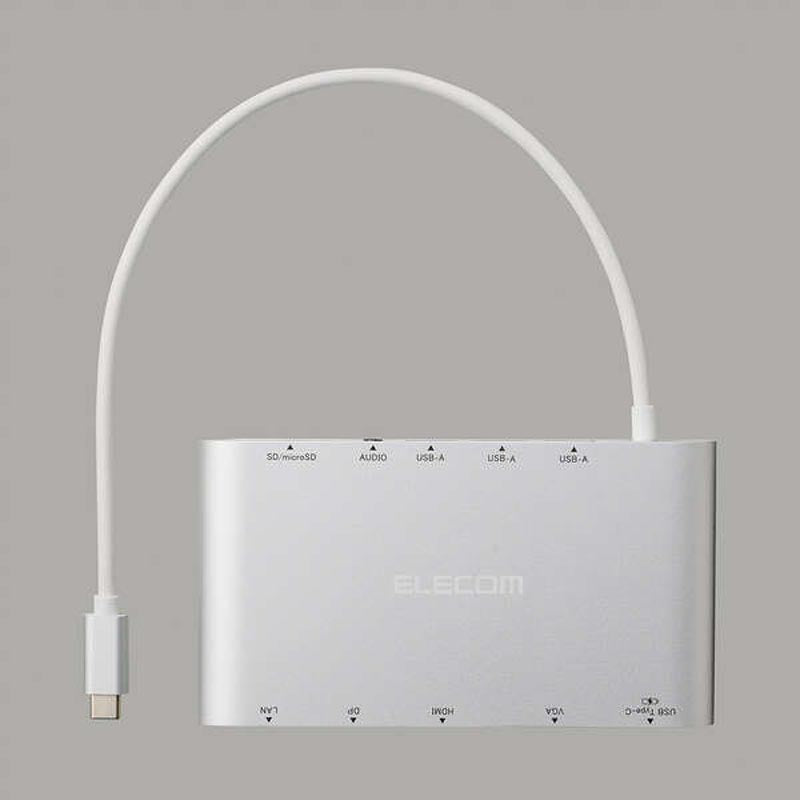

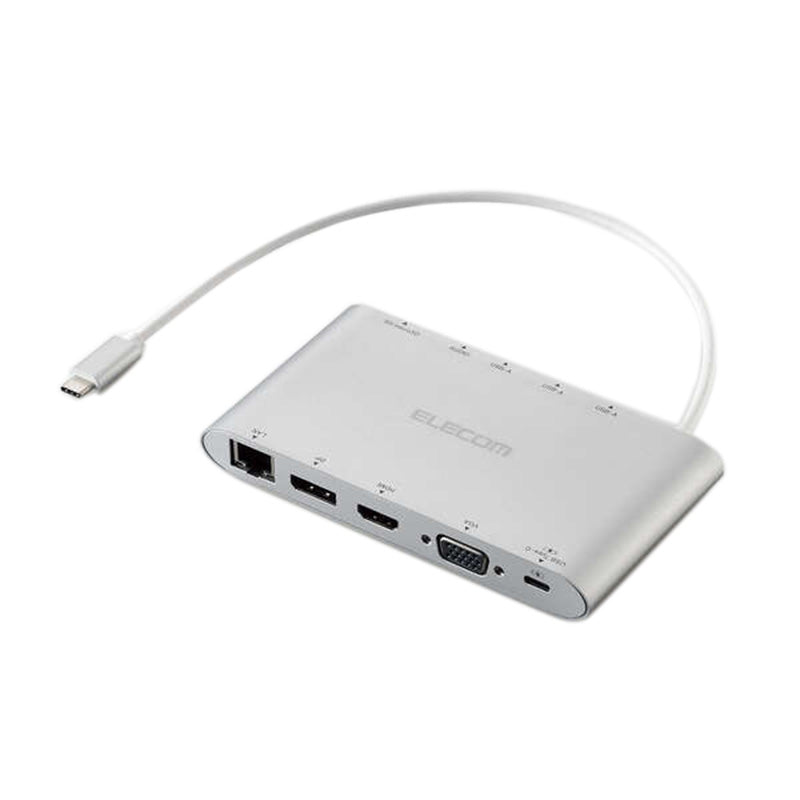

Elecom DST-C28SV 11 in 1 Docking Station HDMI/DP/VGA/3X USB3.2(Gen 1)/Lan Port/SD & Micro SD PD100W

Supported OS (Windows)

Windows 11/10

Supported OS (mac)

macOS Sonoma 14/macOS Ventura 13/macOS Monterey 12

Supported OS (iPadOS)

iPadOS 17/16 *When charging your iPad, please use an AC adapter that supports USB Power Delivery of 45W or more.

Supported OS Notes

*It may be necessary to update to the latest version of each OS or install a service pack.

Connector Specifications (Upstream)

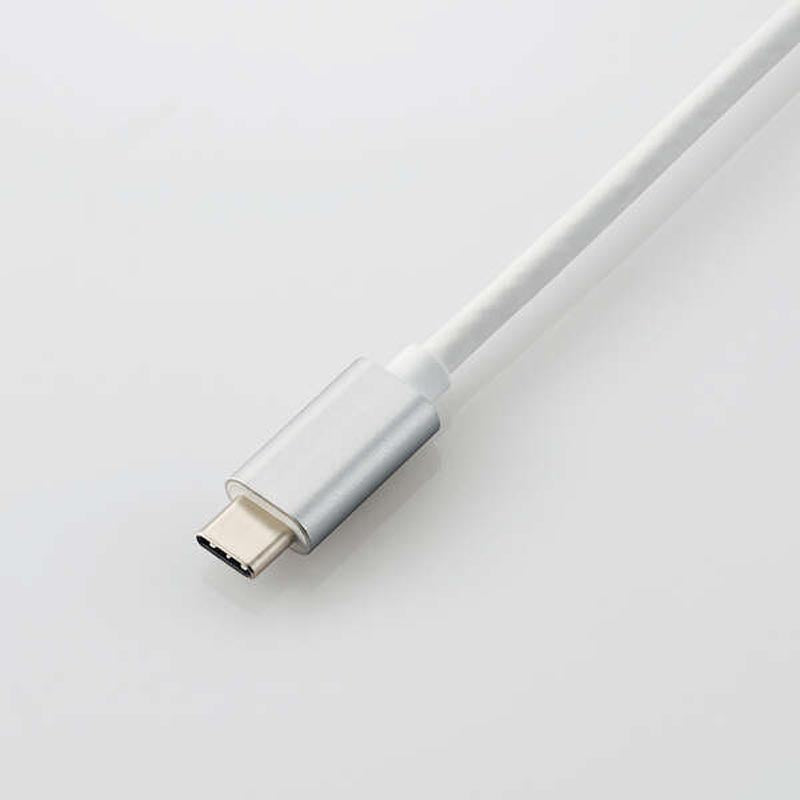

USB Type-C(TM) connector <USB 5Gbps (USB3.2(Gen1))>, USB Power Delivery compatible (maximum input 100W / maximum output 85W), DisplayPort(TM) Alt mode (when connected to USB2.0, it operates in USB2.0 compatibility (video output is not supported when connected to USB2.0))

USB port (downstream)

1: USB Type-C port x 1 <Maximum output 85W> *USB Power Delivery port for charging only

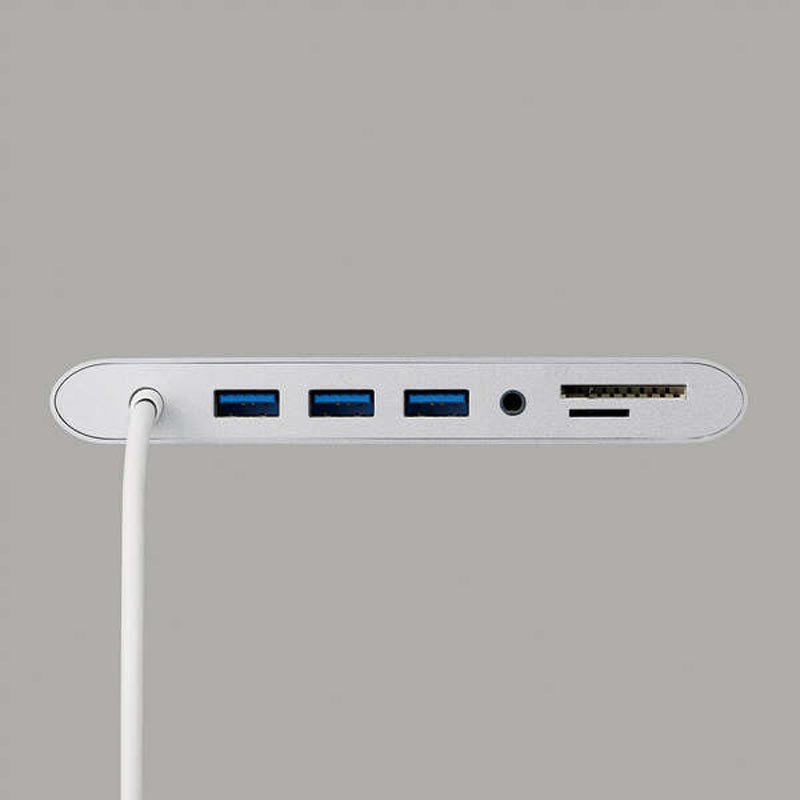

USB port (downstream)

2: USB-A port <USB 5Gbps (USB3.2 (Gen1))> x 3, power supply value: 13.5W (5V/2.7A) in total for 3 ports *For data communication only. Does not support video output.

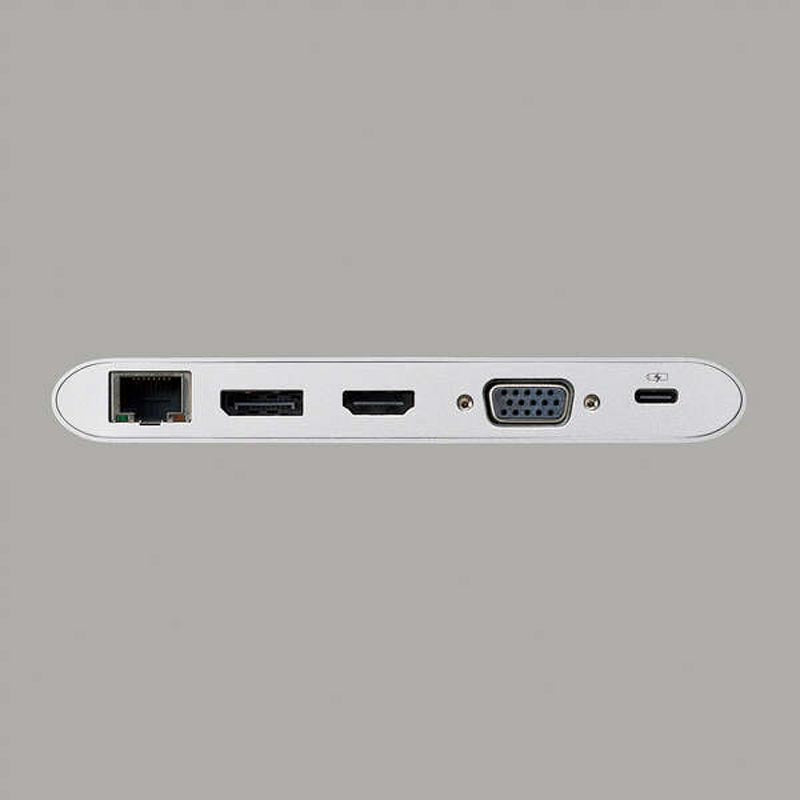

Video output port (downstream)

1: HDMI(R) x 1 <Supported resolution: Max. 4K/30Hz> *

Video output port (downstream)

2: DisplayPort(TM) x 1<Supported resolution: Max. 4K/30Hz>※

Video output port (downstream)

3: VGA x 1 <Supported resolution: Maximum 1920 x 1080/60Hz>

Video output port (downstream)

*The DisplayPort(TM) input signal must be compatible with the Display Port(TM) 1.2 standard.

Video output port (downstream)

*When connecting the HDMI port and DisplayPort(TM), or the HDMI port and VGA port, or the DisplayPort(TM) and VGA port simultaneously, the maximum resolution for both ports is 1920 x 1080/60Hz.

Video output port (downstream)

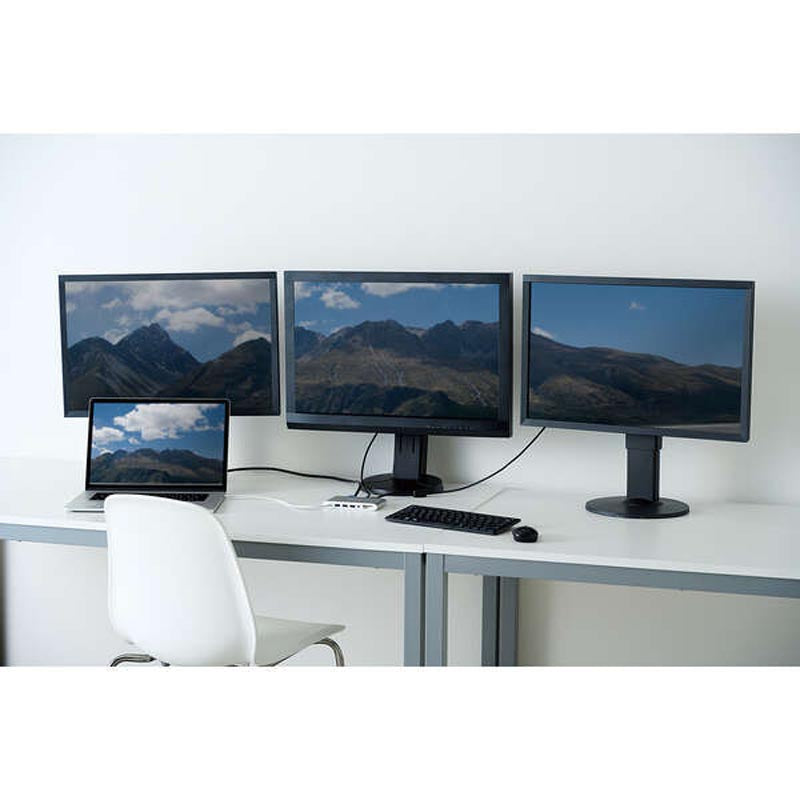

*When the HDMI port, DisplayPort(TM), and VGA port are connected simultaneously, the maximum resolution of one port will be 1920 x 1080/60Hz, and the maximum resolution of the other two ports will be 1920 x 1080/30Hz.

LAN Port (Downstream)

RJ45(1000BASE-T/100BASE-TX/10BASE-T)

Card Reader (Downstream) 1:

SD memory card x 1, Supported media: SD (HighSpeed/ProHighSpeed/Class2/4/6/10), SDHC (Class2/4/6/10/UHS-I), SDXC (Class10/UHS-I)

Card Reader (Downstream) 2:

micro SD memory card x 1, Supported media: microSD, microSDHC (Class2/4/6/10/UHS-I), microSDXC (Class10/UHS-I)

Voice Ports (Downstream)

3.5φ4-pole stereo mini jack x 1 (CTIA format)

Power supply method

Bus powered

Cable length

Approx. 30cm *Not including connector

color

Silver

External dimensions

Width approx. 137mm x depth approx. 75mm x height approx. 17mm *Cable not included

Operating environment

Temperature: 5℃ to 40℃, humidity: 30% to 80% *No condensation

Warranty period

1 year
