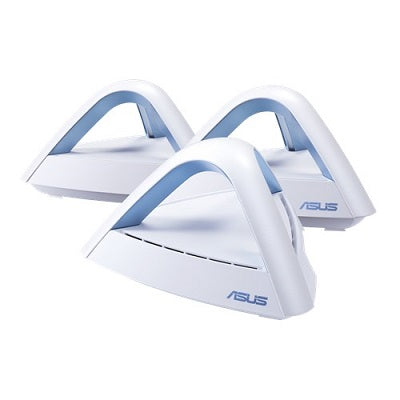

AC1750 Dual Band Mesh WiFi System – Covers Multi-Story Homes up to 5400 sq. ft.,
with AiProtection network security powered by Trend Micro, Parental Controls
Banish WiFi Dead Zone — Dual band, tri-hub mesh wifi system with unique antenna placement delivers strong WiFi to every corner of your home.
Fast & Smooth Connections, Always — 3x3 MIMO technology and seamless roaming deliver superior WiFi speed and automatically connect you to the best signal, anywhere in the home.
Always Up-to-date Protection — The lifetime free cloud-based security powered by Trend Micro™ makes sure your privacy on connected devices is protected.
Parental Controls — URL filter and scheduling allow you to protect your family from inappropriate content and unhealthy Internet usage behavior.
You’re in Control — The ASUS Lyra app enables PC-free setup, network management and diagnostics, and notifies you about any problems.




Network Standard: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Product Segment: AC1750 superior AC performance : 450+1300 Mbps
Coverage: Large homes
Data Rate:
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 450 Mbps
802.11ac : up to 1300 Mbps
Antenna: Internal antenna x 3
Transmit/Receive:
MIMO technology
2.4 GHz 3 x 3
5 GHz 3 x 3
Memory:
32 MB Flash
128 MB RAM
Operating Frequency: 2.4 GHz / 5 GHz
Encryption: WPA2-PSK
Management: DHCP, DDNS, Port Forwarding, System Event Log
VPN Support:
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
OpenVPN server
PPTP client
L2TP client
OpenVPN client
WAN Connection Type: Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Utilities: Lyra App
Ports: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 1
Features
Smart Connect
Parental Control
Guest Network :
VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
VPN Pass-Though :IPSec, PPTP, L2TP
Button: Reset Button, Pair Button
OS Support:
Windows® 10 (Windows 10 Pro license and recovery media included).
Windows® 10 64-bit
Windows® 8.1 (Windows 10 Pro license and recovery media included).
Windows® 8 (Windows 10 Pro license and recovery media included).
Windows® 7 (Windows 10 Pro license and recovery media included).
Mac OS X 10.1 to 10.12
Dimensions: 135.1 x 123.2 x 77.9 ~ mm (WxDxH) (Without Bezel)
Package Content:
Lyra Trio Hubs
Ethernet Cable X1
Power Adapters
Quick Start Guide
Warranty Card
Router Special Features
Parental Control
Operation mode:
Wireless router mode
Access point mode
Note: AiProtection (no Vulnerability protection and App filter)
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
