Color Extreme Dark Gray
Form Factor Small form factor
Operating System Windows 11 Home - ASUS recommends Windows 11 Pro for business
Office 1-month trial for new Microsoft 365 customers. Credit card required.
Processor
Intel® Core™ i5-14500 Processor 2.6GHz (24MB Cache, up to 5.0GHz, 14 cores, 20 Threads)
N/A
CPU cooler Air Cooler
Chipset Intel® B760 Chipset
DIMM Memory 16GB DDR5 U-DIMM
Memory Max. "Memory speed is 5600MHz, but run at 4000~4400MHz.
Max memory 64GB"
Graphic Intel® UHD Graphics 770
Storage 1TB M.2 2280 NVMe™ PCIe® 4.0 SSD
Optical Drive Without optical drive
LAN Intel WGI219V 10/100/1000 Mbps, non-vPro
Audio High Definition 7.1 Channel Audio
Wireless Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card
Power Supply 180W power supply (80+ Bronze, peak 228W)

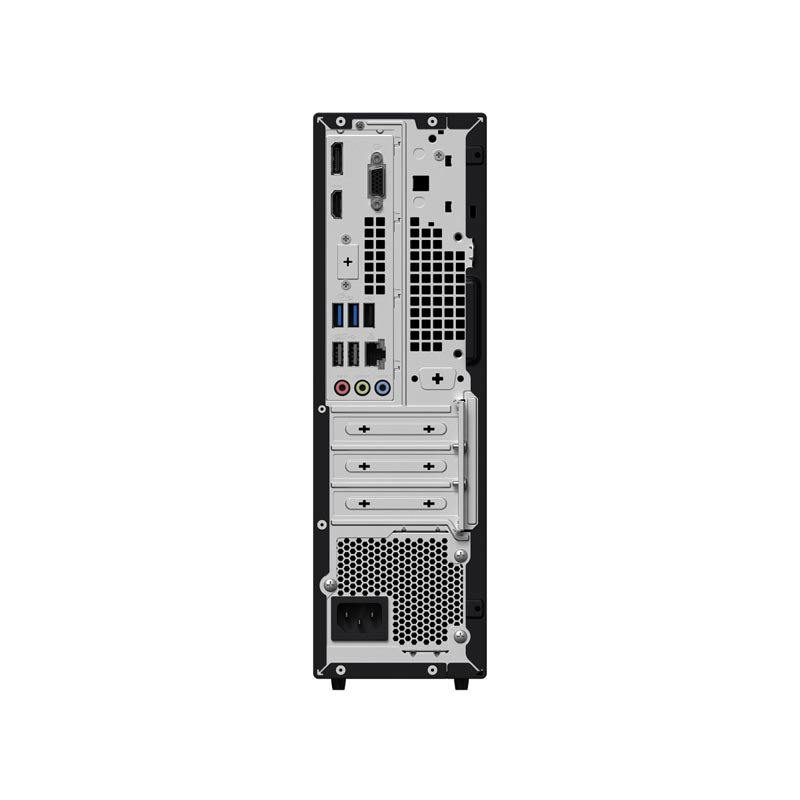

Rear I/O Port
1x RJ45 Gigabit Ethernet
1x HDMI 1.4
1x VGA Port
1x 7.1 channel audio (3 ports)
1x Kensington lock
1x Padlock loop
2x USB 2.0 Type-A
2x USB 3.2 Gen 1 Type-A

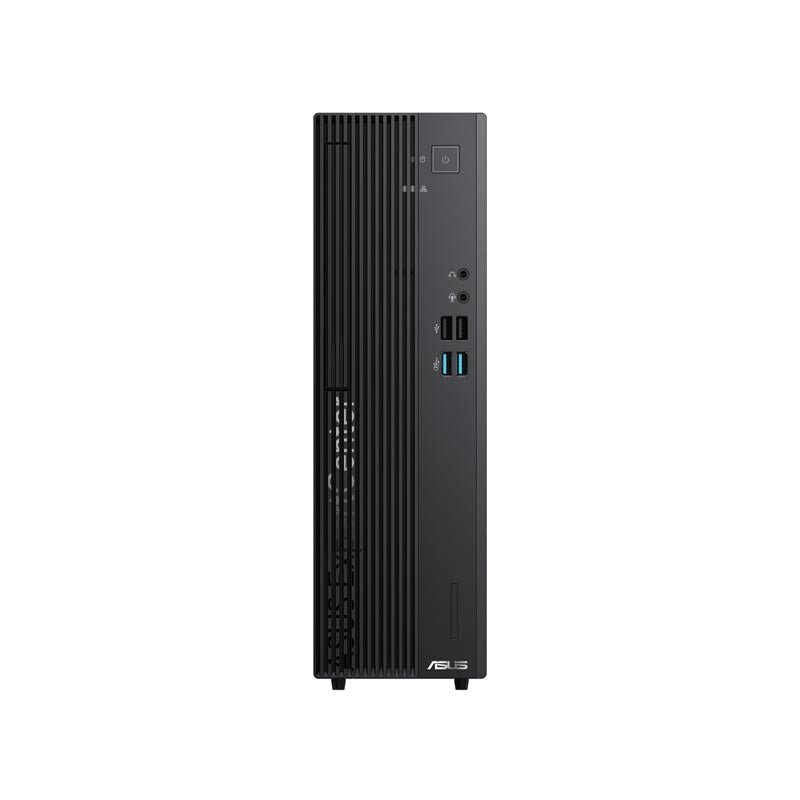

Front I/O Port
1x Headphone
1x 3.5 mm combo audio jack (Mic in or Headphone out)
2x USB 2.0 Type-A
2x USB 3.2 Gen 2 Type-A
1x 2 in 1 card reader SD / MMC
Drive Bay
2.5"" x 1
3.5"" x 1
Serial ATA 4 x SATA 6.0Gb/s ports
Expansion Slot(includes used) "1x PCIe® 4.0 x 16
2x PCIe® 3.0 x 1
1x M.2 2230 connector for storage
1x M.2 2280 connector for storage
1x M.2 connector for WiFi
2x DDR5 U-DIMM slot

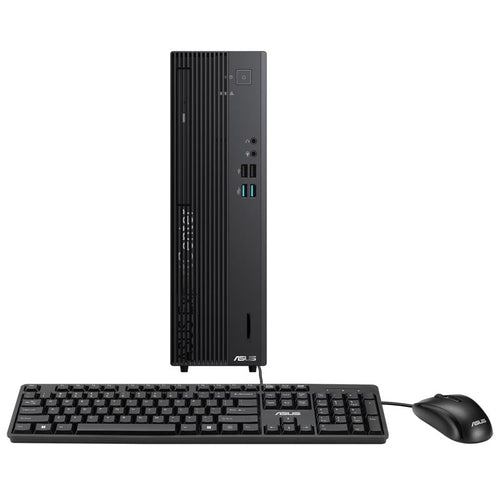

Keyboard & Mouse
Wired keyboard (USB)
Wired optical mouse (USB)
1 x COM port
Dimension (WxDxH) 09.30 x 29.60 x 30.90 cm (3.66" x 11.65" x 12.17")
Weight 06.00 kg (13.23 lbs)
My ASUS features
System diagnosis
Fan profile
AppDeals
Built-in Apps
MyASUS
ASUS Business Manager
One-Month Membership of Adobe Creative Cloud All Apps, Individual The redemption duration from September 15, 2021 to November 15, 2022.
Security HDD User Password Protection and Security
Kensington Security Slot™(7x 3mm)
McAfee® 30 days free trial
Padlock loop
Trusted Platform Module (Firmware TPM)
Antivirus McAfee® 1 years
Ecolabels & Compliances
EPEAT Gold
EPEAT Silver
Energy star 8.0
REACH
Warranty 3Y OnSite Service
