• USB™ 3.0 Gigabit Ethernet port
• USB™ 3.0 plug-and-play and backward compatible with USB™ 2.0 and 1.1
• Transfer all your files almost instantly over a true Gigabit network.
• IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T) compatible
• USB™ bus-powered
• USB™ 3.0 SuperSpeed
• Transfer rates of up to 5 Gbps enable bulky file backup
• Compatible with Windows® and macOS
Interface
Host Interface
USB™ 3.0 Male Type-A connector

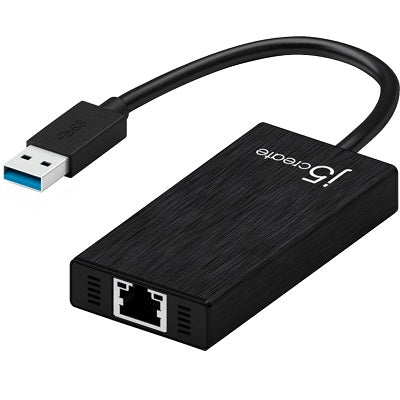

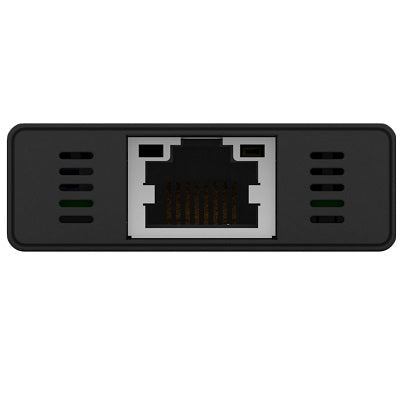

Ethernet Port
RJ-45 Female connector (Gigabit Ethernet)
USB™ Port
USB™ 3.0 Female connector
LED
Activity and Link LED indicators

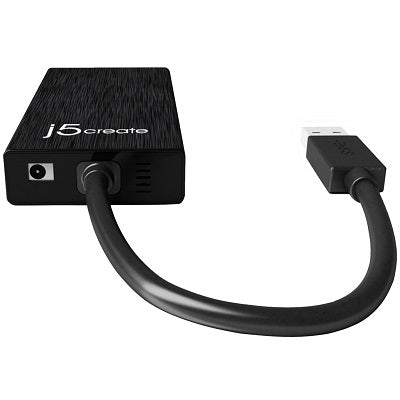

Power Jack
DC 5V (3.5 mm OD, 1.35 mm ID)
Power
Power Mode
Bus-powered or Self-powered
Functions
Ethernet
Transfer Rate:
1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex)
IEEE:
IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x
Modes:
Supports Wake On LAN function, suspend mode and remote wake-up via link-change,
Magic Packet™, or Microsoft® wake-up frame
Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
Supports Jumbo Frame
Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload
Physical Specifications

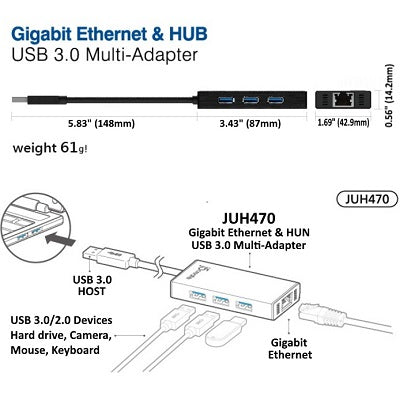

Dimensions
Main body: 43.75(W) x 90.6(H) x 18.6(D) mm
Cable length: 14.5 cm
Weight
Approximately 58.5g (including cable)
System Requirements
Microsoft® Windows® 8.1/ 8/ 7/ XP (32-bit or 63-bit)
macOS® X 10.10 / 10.9 / 10.8 / 10.7 / 10.6
Windows® Server 2012, 2008 R2, 2003(32-bit or 64-bit)
Linux® Kernel 2.6.14-3.5.0
Available USB™ port (USB™ 3.0 is recommended)
Package Contents

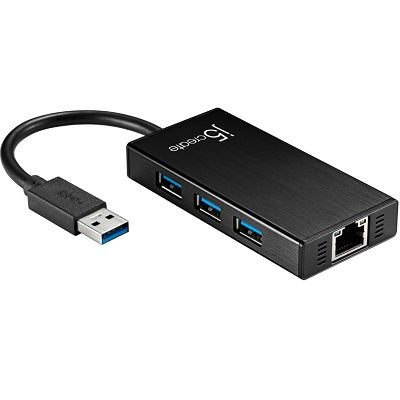

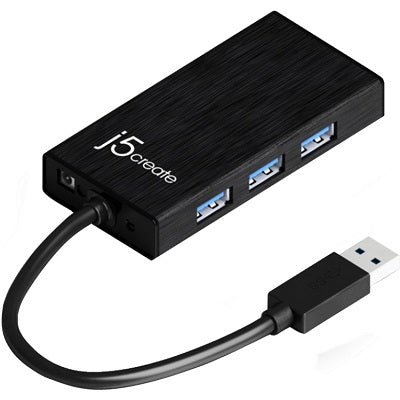

JUH470 USB™ 3.0 Gigabit Ethernet & 3-Port HUB
Quick Installation Guide
Driver CD
