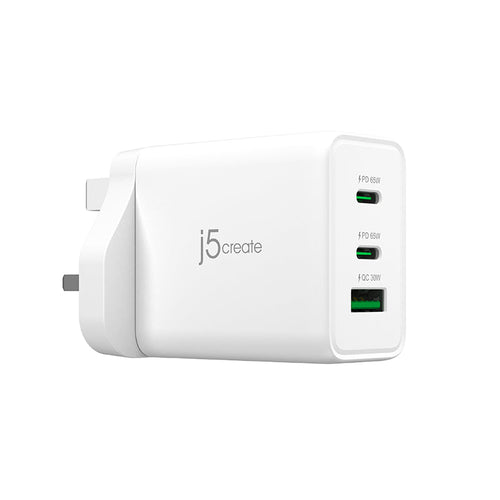

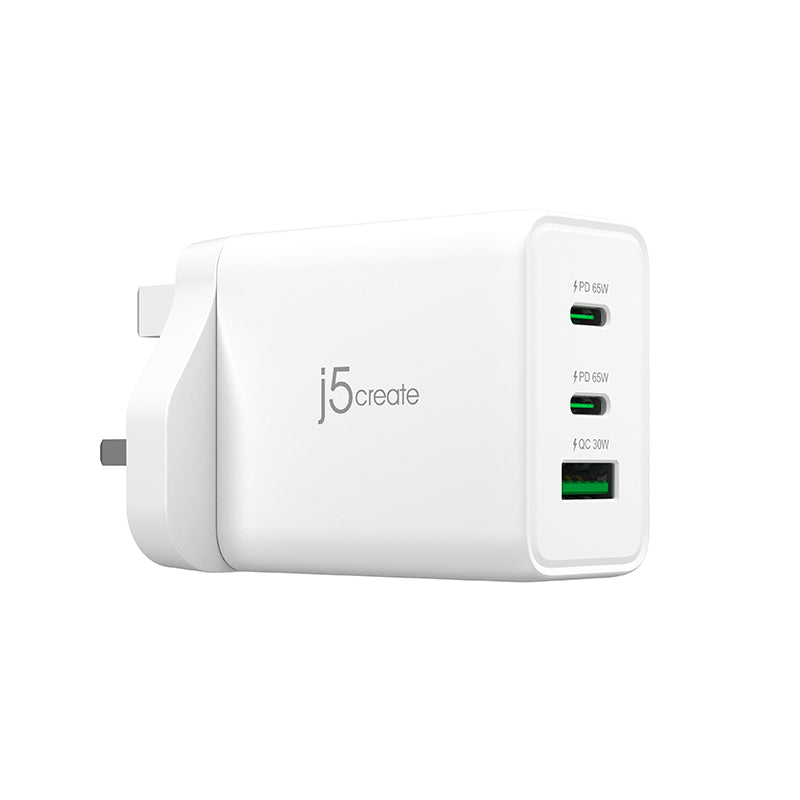

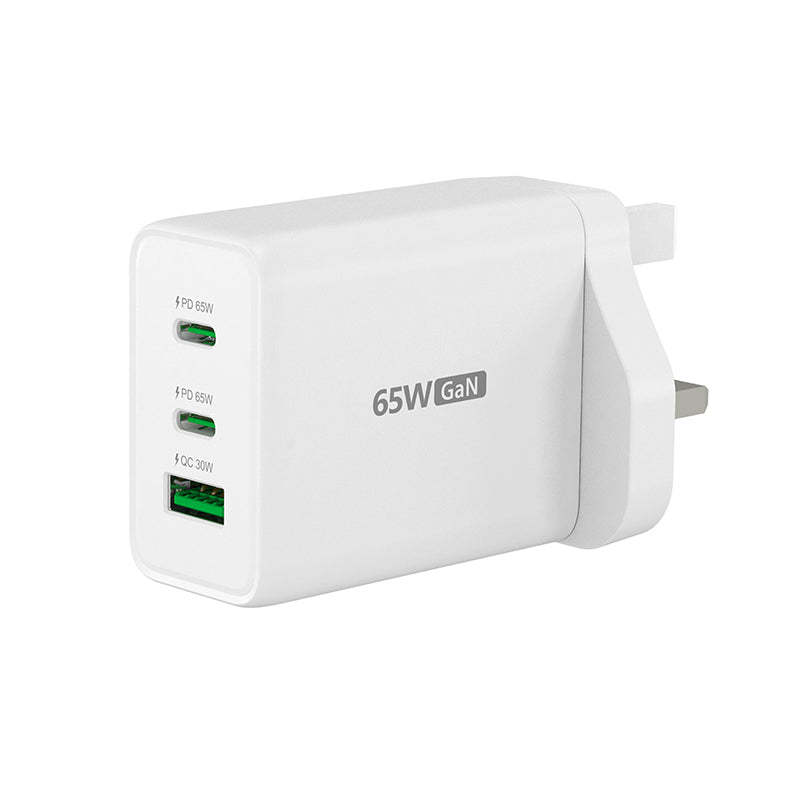

The 65W GaN USB-C® 3-Port Charger can simultaneously charge two USB-C® devices and one USB™ Type-A device. The charger uses GaN technology which enables it to deliver a significant amount of power in a small package.
The USB-C® ports support Power Delivery 3.0/2.0 technology enabling laptops, tablets, and mobile devices to charge at the fastest rates possible.
For the safety of your gadgets, the charger also has surge, overcharging, overcurrent, and overheating protection. It works excellent as a replacement for the original charger that comes with a variety of mobile devices thanks to its higher charging capabilities, broad compatibility, and small size.
Features
· Designed to provide 65W of power in a much smaller size *The combined power output of the 2-port USB-C® power delivery ports and the USB™ Type-A port
· When using both ports simultaneously, the USB-C® ports provide up to 45W And 18W of fast charging
· The USB-A port can provide up to 30W fast charging when charging using only the USB™ Type-A port
· When using 3 ports simultaneously, USB-C® 1 ports provide up to 45W, USB-C® 2 and USB™ Type-A share 5V 3.6A
· Charging USB-C® and USB™ Type-A port simultaneously automatically balances the charging output up to 65W: For more power output combinations, please check the chart below.
| USB-C® 1 | USB-C® 2 | USB™ Type-A | Total | |
| 1 | PD65W | 65W | ||
| 2 | PD65W | 65W | ||
| 3 | QC™ 30W | 30W | ||
| 4 | PD45W | PD18W | 63W | |
| 5 | PD45W | QC™ 18W | 63W | |
| 6 | 18W (5V / 3.6A) | 18W | ||
| 7 | PD45W | 18W (5V / 3.6A) | 63W |
Hardware
Input
AC 100V~240V , 50~60Hz ,1.5A (max)
USB Ports
USB-C® Female x2, USB™ Type-A Female x1
USB-C Output Half
5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A (65W Max)
5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A (65W Max)
USB Type A Output
5V/4.5A,9V/3A,12V/2.5A (30W Max.)
Warranty
2 Year Limited
Physical Specifications
Color
White
Enclosure Type
Plastic
Operating Temperature
32 to 104°F (0 ºC ~ +40 ºC)
Product Depth
49.6mm
Product Height
87.7mm
Product Weight
119g
Product Width
49.7mm
Package Contents
· 1 - 65W GaN USB-C® 3-Port Charger
· 1 - Quick Installation Guide (QIG)
