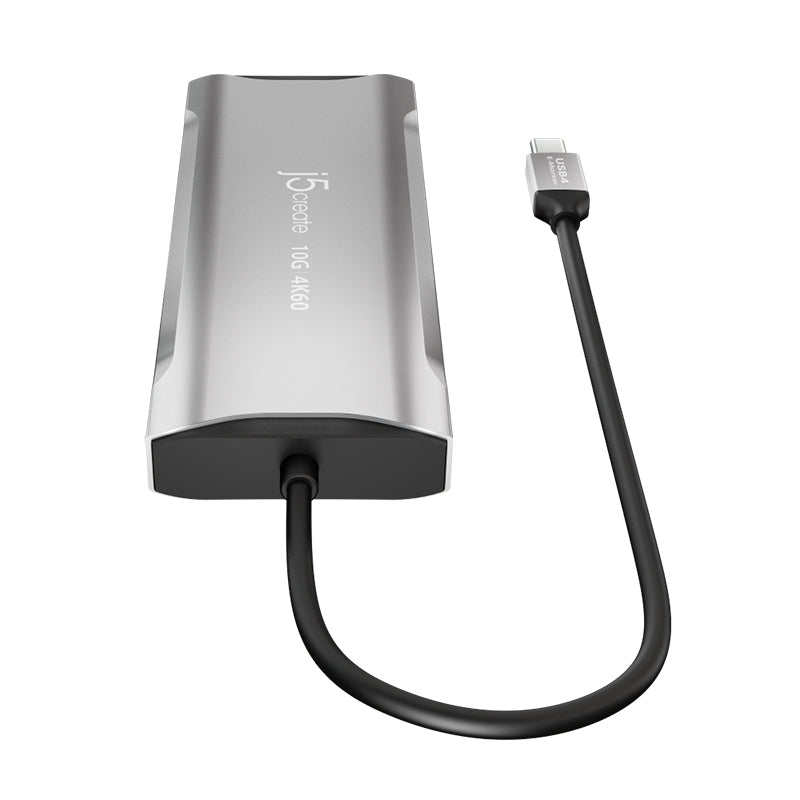

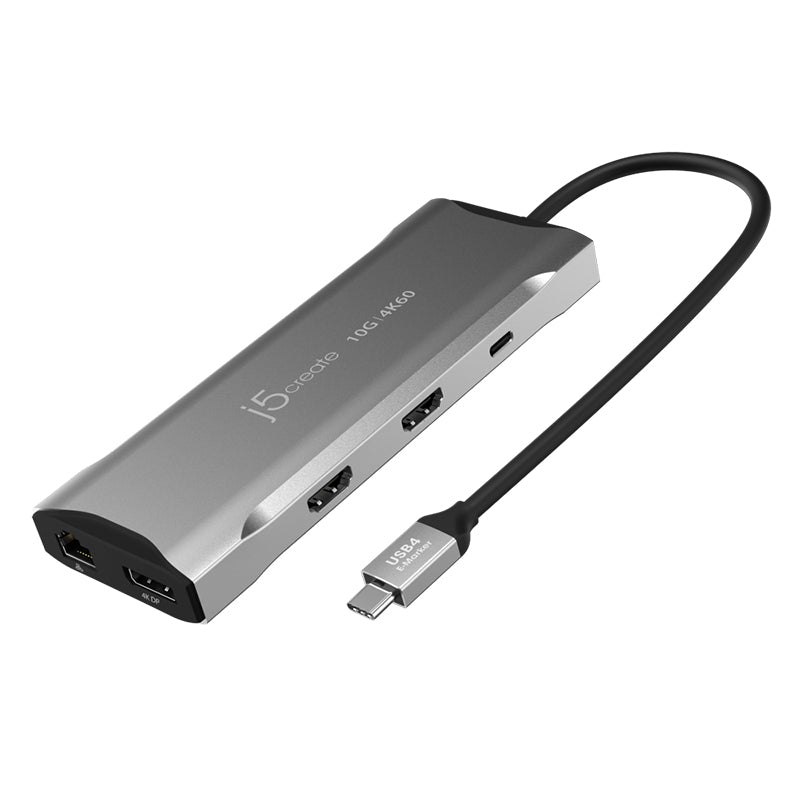

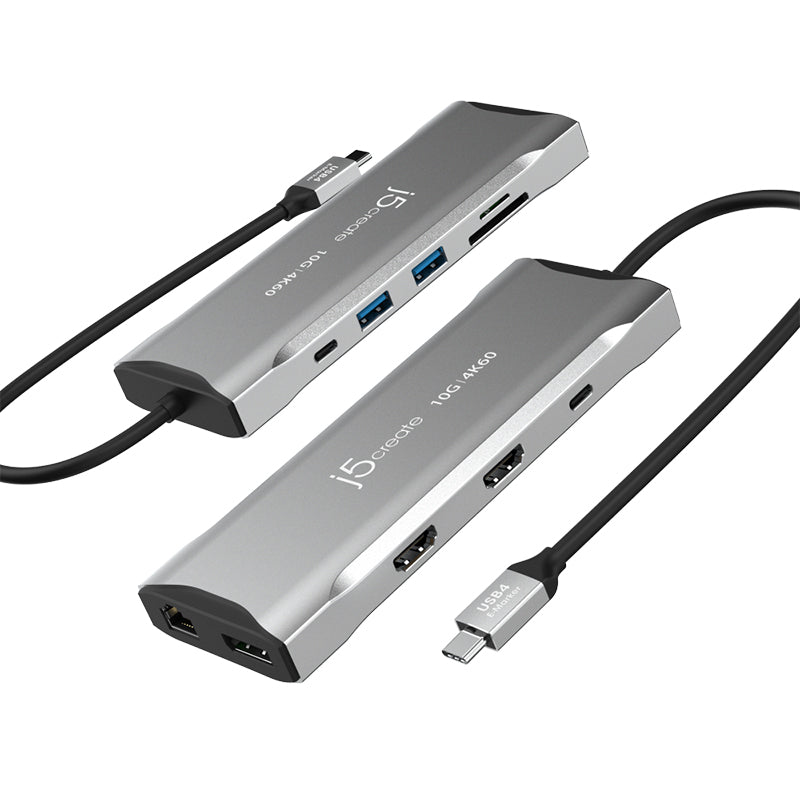

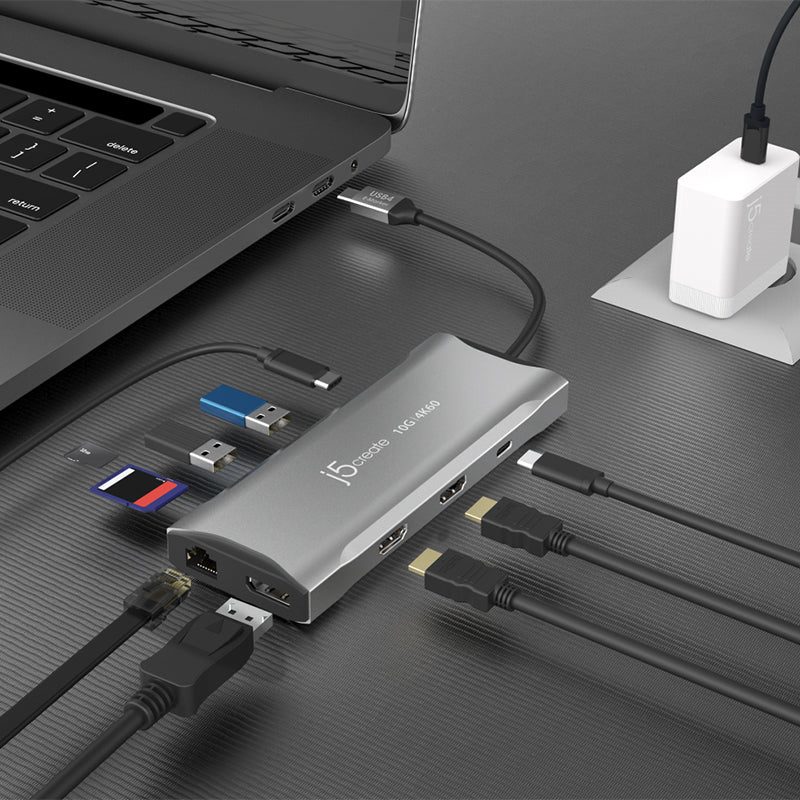

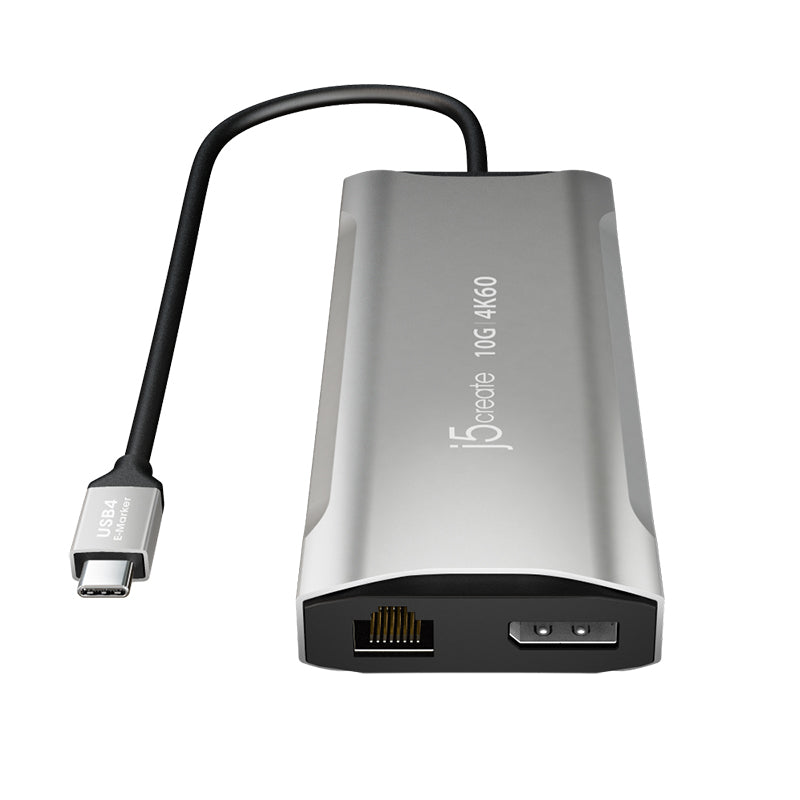

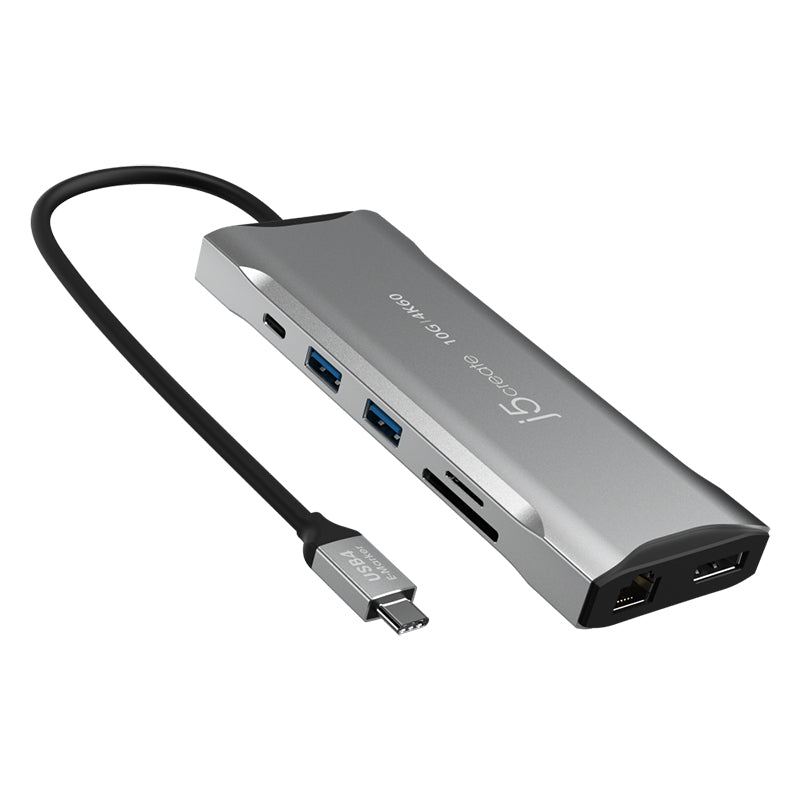

J5Create JCD397 USB-C Triple Monitor 10Gbps Mini Dock

Hardware

Audio SupportedYesHost Connector: 1 - USB-C® Male

Network InterfaceRJ45 (Gigabit Ethernet)Ports:

• 1 - USB-C® 10Gbps

• 1 - USB-C® 5Gbps with Power Delivery 3.0

• 2 - USB™ Type-A 10Gbps

• 1 - USB-C® Power Delivery 3.0

• 2 - 4K HDMI™

• 1 - DisplayPort™

• 1 - SD™ & microSD™ 4.0 memory card reader/writer

• 1 - RJ45 Gigabit Ethernet

Power Source : Bus-powered or self-powered

Video Output:

• 2 - HDMI™ Female

• 1 - DisplayPort™ Female

Warranty: 2 Year Limited

Performance

Audio Channel: l2.1 via HDMI™

Compatible Networks: 10/100/1000 Mbps

Displays Supported: 3

Max Data Transfer Rate: 10 Gbps

Max Display Refresh Rate (Windows® (MST)):

- 3840 x 2160 @ 60

- 2560 x 1440 @ 144 via HDMI™

- 1920 x 1080 @ 240 via DP™

Max Display Resolution: 3840 x 2160

Power

Input Current: Up to 5A

Input Voltage: Up to 20V

Output Current: Up to 4.25A

Output Voltage: Up to 20V

Power Consumption: ≤ 650 mA

Power Delivery: Up to 100W via USB-C®

Physical Specifications

Cable Length: 7.87 in. (20 cm)

Colour: Space Grey

Enclosure Type: Aluminum

Operating Humidity: < 85% non-condensing

Operating Temperature: 30 to 116°F (-1 to 41°C)

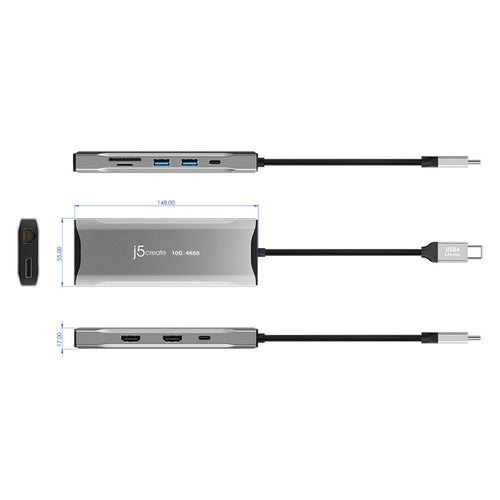

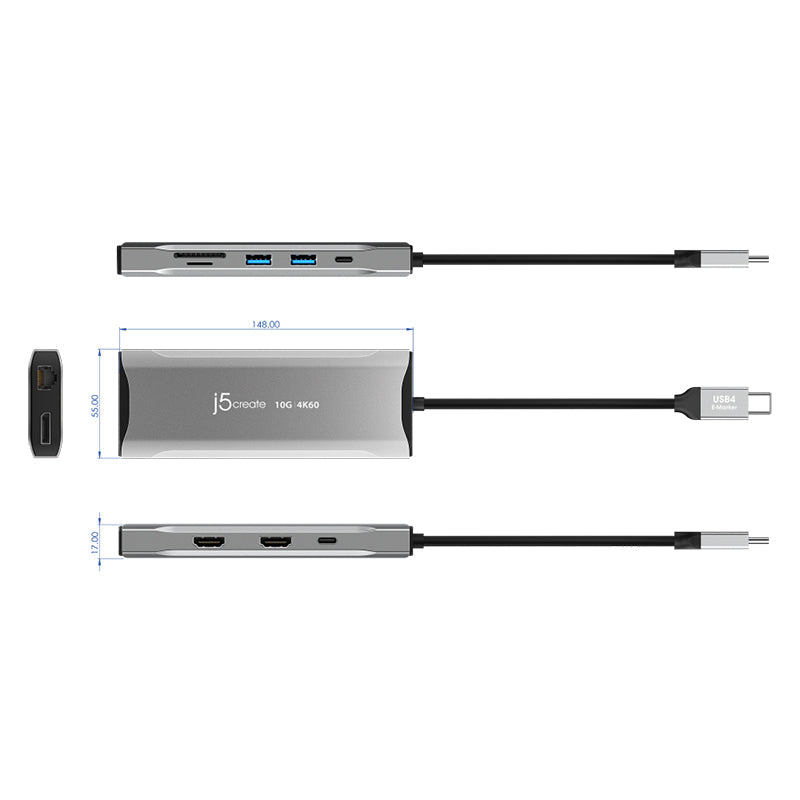

Product Depth: 0.67 in. (17 mm)

Product Height: 5.8 in. (148 mm)

Product Weight: 4.36 oz (123.5g)

Product Width: 2.17 in. (55 mm)

Storage Humidity: < 85% non-condensing

Storage Temperature: 0 to 155°F (-17 to 68°C)

System Requirements

• Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0 Please refer to the manufacturer of your computer for more information about your device

• The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve a triple-monitor configuration

• The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz, main DisplayPort™ 1.4 devices are listed as follows:

- MacBook Air® 13" 2019 or later

- MacBook Pro® 15" 2017 or later

- MacBook Pro® 16"

- iPad Pro® 11"/12" 2018 or later

- Surface™ Pro 7

- Surface™ laptop 3

Special Notes

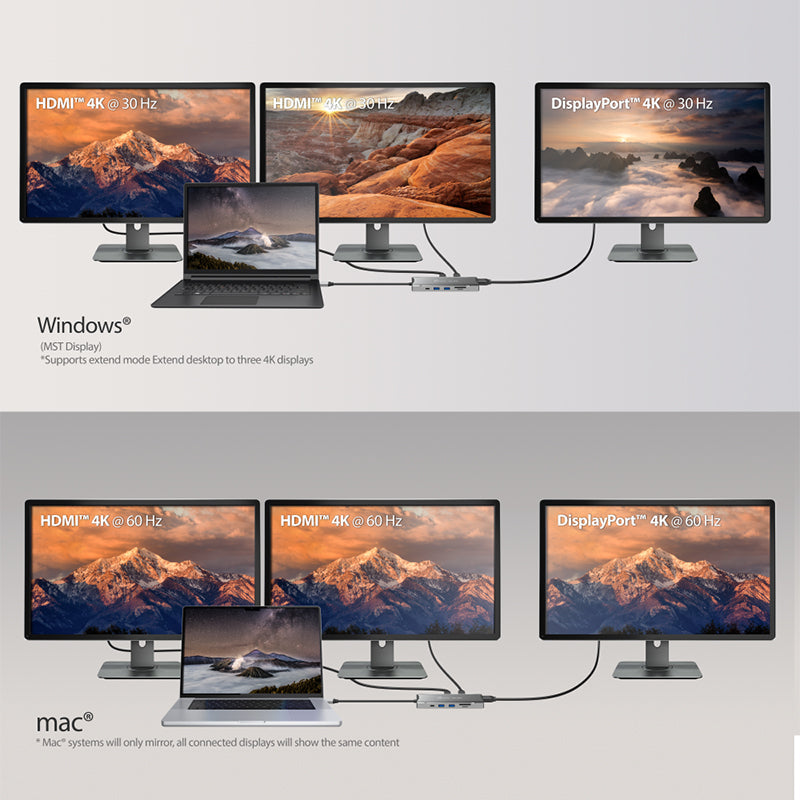

• A host laptop without MST support can only connect to one additional monitor

• The MST protocol is not currently supported by macOS® or Chrome OS™. The display output is limited to 'Mirrored' mode when connected.

• A 4K-capable display is required for obtaining the 3840 x 2160 resolution

• If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited

• If connected to a DisplayPort™ 1.2 device, performance will be limited to 3840 x 2160 @ 30 Hz (Windows®)

• The mini dock can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device

• If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.

• We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time

Package Contents:

• 1 - JCD397 4K60 Elite USB-C® Triple-Monitor 10Gbps Mini Dock

• 1 - Quick Installation Guide (QIG)
