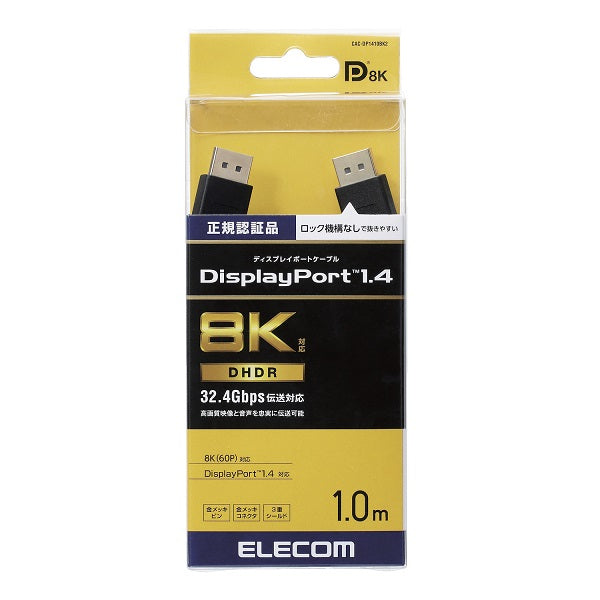

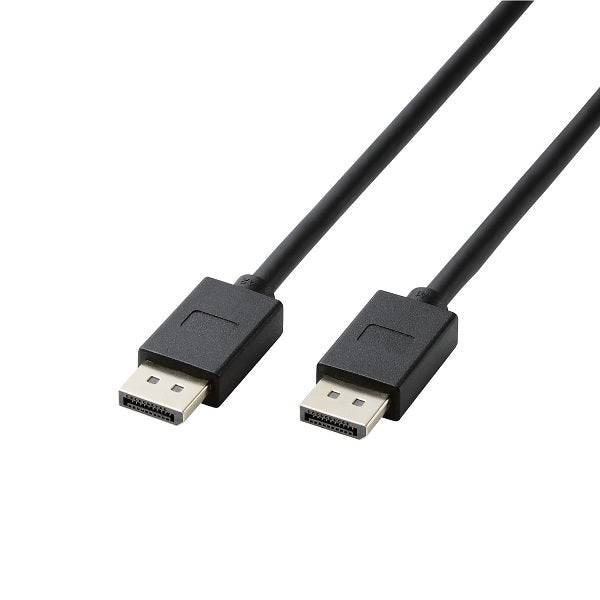

DisplayPort ™ cable capable of transmitting video and audio signals
A DisplayPort ™ cable that can transmit video and audio signals by connecting a display to a computer equipped with a DisplayPort ™ terminal. With a single cable, uncompressed digital high-definition video signals and multi-channel digital audio (surround) signals can be transmitted, and control signals can be bidirectionally communicated.
DisplayPort standard Ver1.4 certified
It is a regular certification cable that has been certified by DisplayPort standard Ver1.4.
High-speed transmission of up to 32.4 Gbps is possible
High-speed transmission of up to 32.4 Gbps is possible.
Can transmit 8K video
8K video can be transmitted.
Easy to pull out type without lock mechanism
A type without a lock mechanism that is easy to pull out.
Supports multi-stream function
It supports a multi-stream function that allows you to output video to multiple displays from one DisplayPort ™ terminal on your computer.
* The number of displays that can be connected depends on the specifications of the device.
Supports DPCP / HDCP
It supports DPCP and HDCP, which are copyright protection technologies that prevent unauthorized copying of digital content.
Supports HDR
It is compatible with HDR, which can transmit stereoscopic images that take advantage of the difference in brightness.
Supports DSC
It supports DSC, which is a compression standard for video interfaces.
Uses gold-plated pins and gold-plated connectors
| Compatible video output device | Personal computers, AV equipment, etc. equipped with a DisplayPort terminal |
| Compatible video display device | Display projectors equipped with a DisplayPort terminal, etc. |
| Connector shape | DisplayPort (male)-DisplayPort (male) |
| Cable thickness | 6.0mm |
| Color | black |
| Plug plating specifications | Gold-plated pin / gold-plated connector |
| Shielding method | Triple shield |
| standard | DisplayPort standard Ver1.4 certified (DPCP / HDCP compatible) |
| Supported resolutions | 8K (7680 × 4320) / 60p |
| Data rate | Up to 32.4 Gbps |
