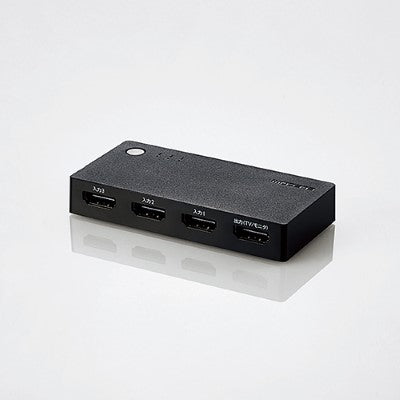

It is an HDMI switch that can switch the video / audio of multiple HDMI devices and output to one TV
It is possible to connect two HDMI equipment such as HDD recorder, BD / DVD player, game consoles (PlayStation (R) 4, Nintendo Switch (TM) etc), Chromecast etc
Even if the TV's HDMI input terminal is insufficient, you can use the HDMI device without replacing the cable
Since it supplies power from HDMI equipment, it can be used without using an external power source such as an AC adapter
When the connected HDMI device starts up, it has an automatic switching function connected automatically
* Switching to already activated equipment can be switched with the button on the top of the main unit
It is an ultra compact design that does not get in the way even if it is installed around the TV

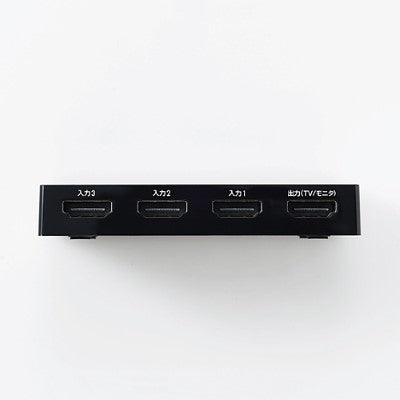

Since all HDMI cables can be wired in the same direction, they can be wired cleanly and cleanly
Supported video output device AV equipment equipped with HDMI output terminal · home game machine (PS 4 · PS 3 · SWITCH etc.) · personal computer · media streaming terminal etc.
Supported video display device TV, display, projector etc. equipped with HDMI input terminal etc.
"Connector shape
* DH-SWL2BK" Input: HDMI type A 19 pin (female) × 2 / output: HDMI type A 19 pin (female) × 1 / power supply: USB [microB] female
"Connector shape
* DH-SWL3BK" Input: HDMI type A 19 pin (female) × 3 / output: HDMI type A 19 pin (female) × 1 / Power supply: USB [microB] female
"Connector shape
* DH-SWL4BK" Input: HDMI type A 19 pin (female) × 4 / output: HDMI type A 19 pin (female) × 1 / power supply: USB [microB] female
HDMI standard High Speed ??with Ethernet (HDMI 1.4a / HDCP compatible)
Supported resolutions 1080 p (1920 × 1080), WUXGA (1920 × 1200)
Color depth Deep Color (36 bits: 12 bits / each color)
Data rate Up to 7.5 Gbps
Supported audio format DTS Digital, Dolby Digital
Warranty period 6 months
Environmental considerations EU RoHS Compliant
