General
Dimensions (L x W x H)
Unfolded: 288×107×96 mm
Folded: 190×95×46 mm
Weight
Gimbal + Built-in Tripod + Magnetic Phone Clamp + Multifunction Module: Approx. 368 g
Extension Rod
Built-in Extension Rod
Maximum Extension Length: 215 mm
Compatible Phone Weight
170-300g
Compatible Phone Thickness
6.9-10 mm
Compatible Phone Width
67-84 mm
Bottom Port
1/4" Screw Hole
Battery
Type
Li-Po 1S
Capacity
3350mAh
Energy
12.06Wh
Charging Temperature
5° to 40° C (41° to 104° F)
Operating Temperature
0° to 40° C (32° to 104° F)
Operating Time
Approximately 10 hours
Charging Time
Approximately 2.5 hours
Gimbal Port Charging
USB-C
Phone Charging
Supported
Gimbal
Controllable Range
Pan: -99° to 210°
Roll: -67° to 245°
Tilt: -20° to 40°
Mechanical Range
Pan: -109° to 222°
Roll: -77° to 255°
Tilt: -224° to 100°
Max Control Speed
120°/s
Wireless Mode
Model
Bluetooth 5.3
Software
App
DJI Mimo
Tripod
Dimensions

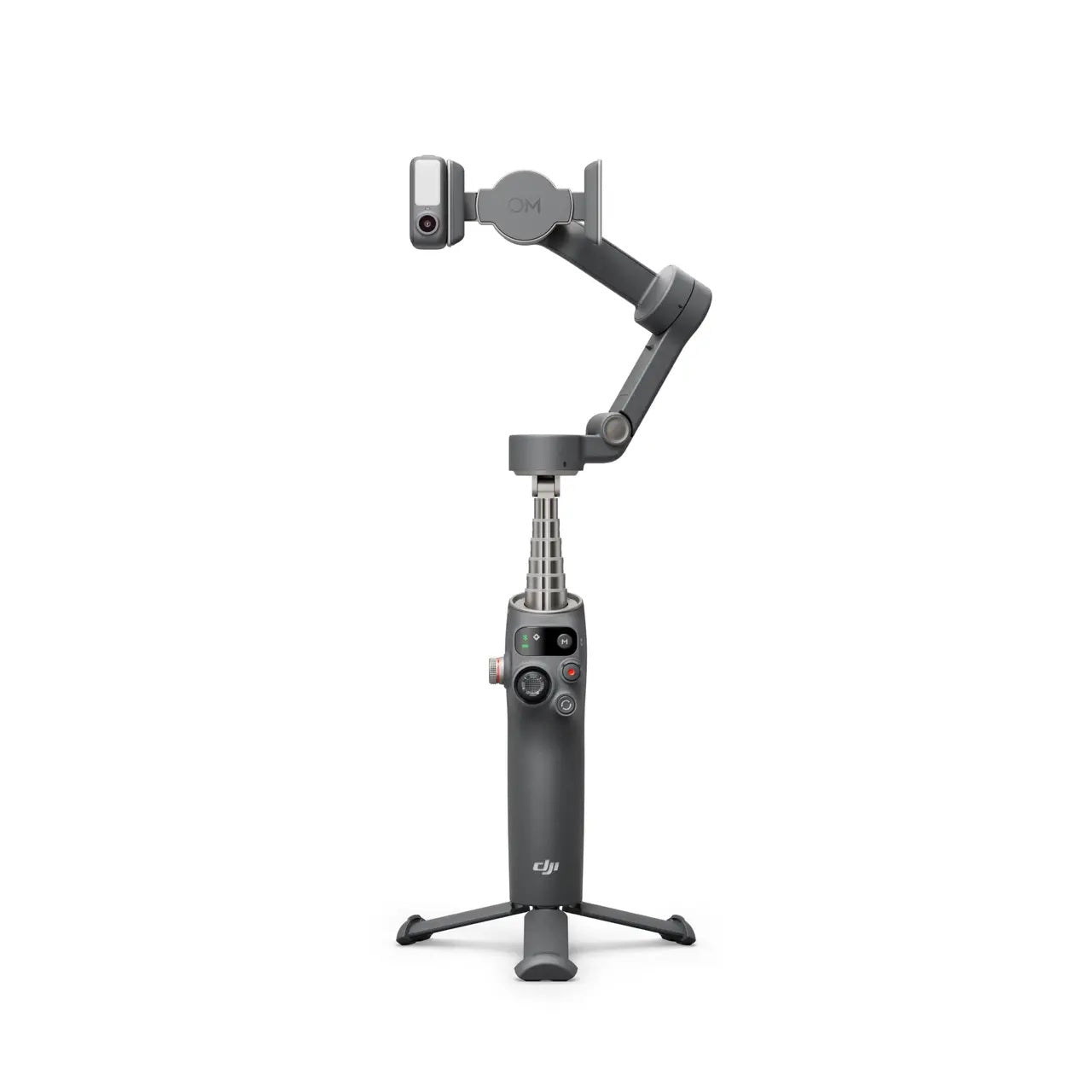

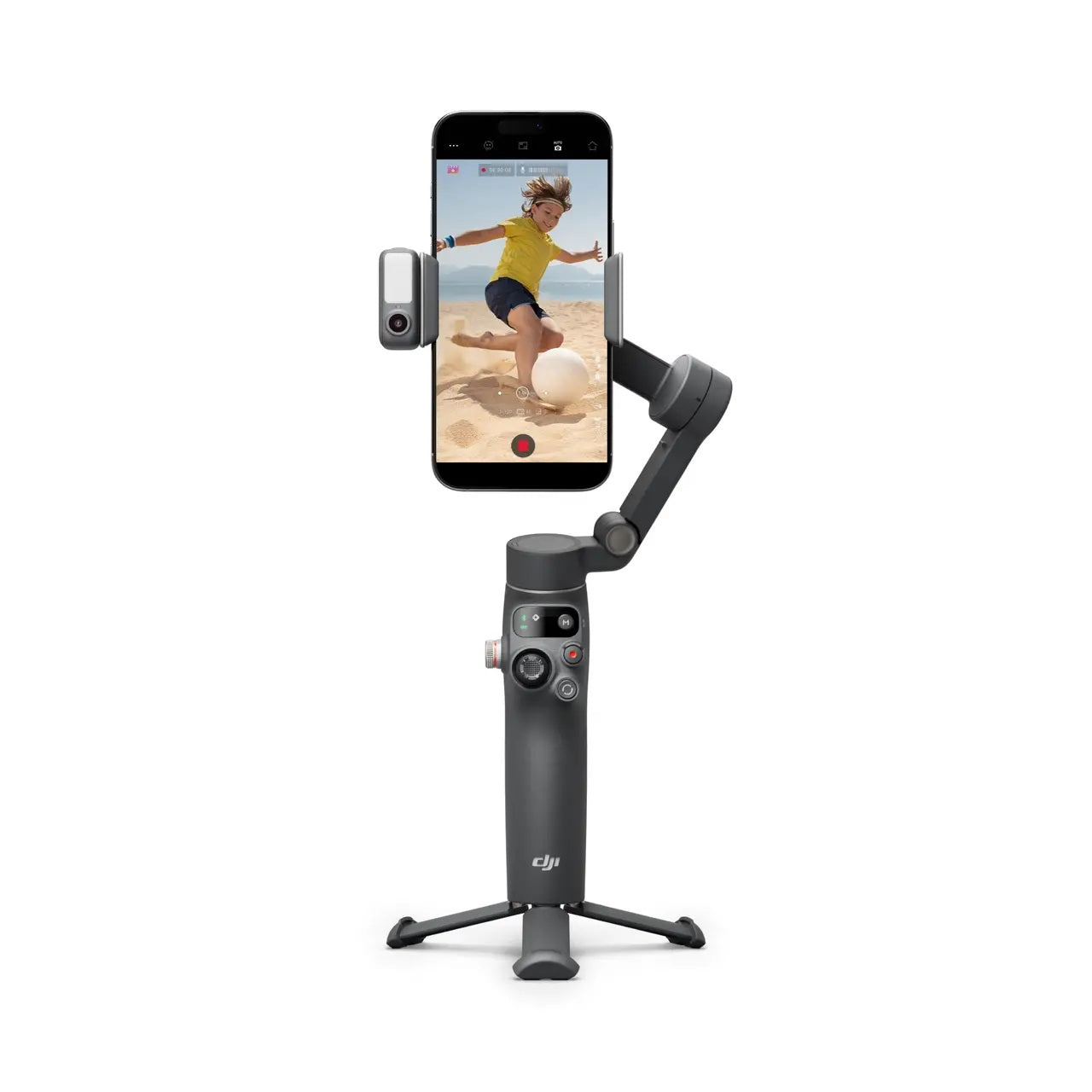

Built-in Tripod Length: 67 mm
Multifunction Module
Compatibility
Supported (standard)
GFSK
2 Mbps
GFSK Transmitter Power (EIRP)
< 16 dBm
GFSK Operating Frequency
2.4000-2.4835 GHz
Fill Light Illuminance
40 lux
Fill Light Colour Temperature
2500-6000 K
