Frequency Support
• FDD LTE:B1/3/7/8, TDD 38,40,41, WCDMA:B1/8

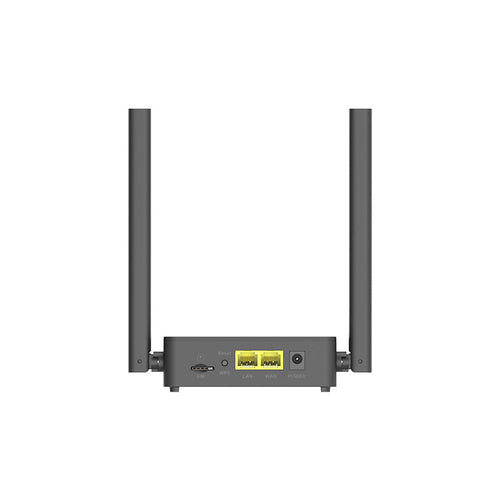

Device Interfaces
• 1x 10/100 Fast Ethernet WAN port, 1x 10/100 Fast Ethernet LAN ports, 1x Reset/WPS button, 1 x Power jack, 2 x 3dBi external LTE antennas, 2 x 5dBi external 2.4G antennas, 1x LTE Interface, 1x Nano SIM card Slot
Data Rates
• 2.4GHz up to 300Mbps
Standards
• 802.11b/g/n
Wi-Fi Data Rates
• HT20: up to 144 Mbps, HT40: up to 300 Mbps
Wireless Encryption
• Wi-Fi Protected Setup (WPS), WPA/WPA2/WPA3 wireless encryption, 64/128-bit WEP (Wired Equivalent Privacy), Wireless ACL MAC address filtering
Firewall
• Network Address Translation (NAT), Stateful Packet Inspection (SPI)
Advanced Features
• WAN fail over, Port forwarding, UPnP, QoS, Bandwidth control, TR-069 remote management, DMZ, IGMP proxy, DHCP server, DHCP client, URL, IP, MAC filter, Virtualserver, DDNS, IPv6, Denial of Service (DoS) protection, ALG: SIP/RSTP/IPsec/PPTP/L2TP, Embedded AP with 4 SSIDs, Router, AP, Wireless client, WISP , Repeater mode
Dimensions
• 105 x 105 x 31.5 mm (W x D x H)
Weight
• 180 g
Power
• Input: 100 ~ 240 V, Output: 12 V / 1A
Temperature
• Operating: 0°C to 40°C, Storage: -40°C to 70 °C
Humidity
• Operating: 10% to 90% non-condensing, Storage: 5% to 95% non-condensing
Certifications
• CE, FCC
